Name: RealWear HMT-1Z1 - Bundle - Optivly
Availability: InStock

Description

Realwear® HMT-1Z1 Bundle

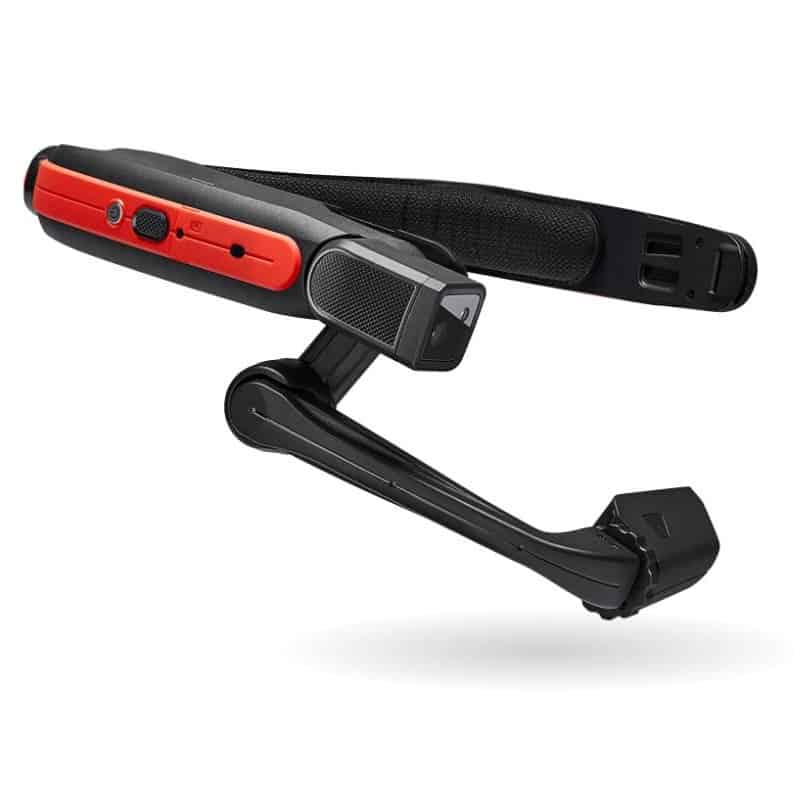

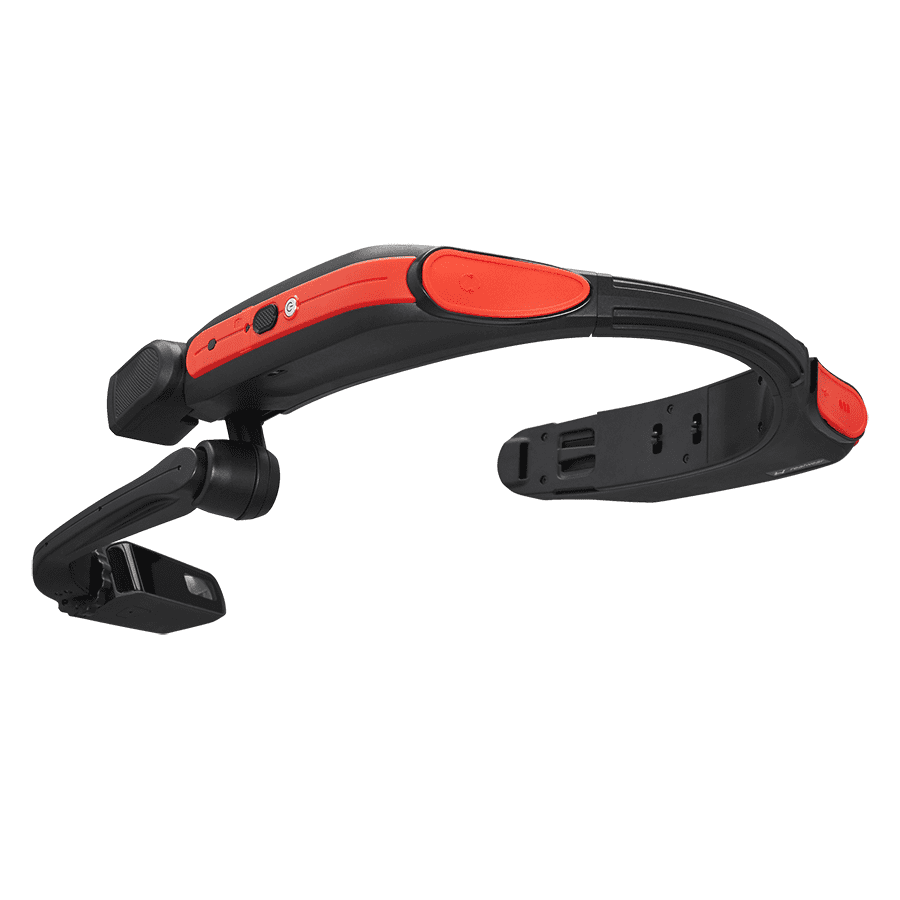

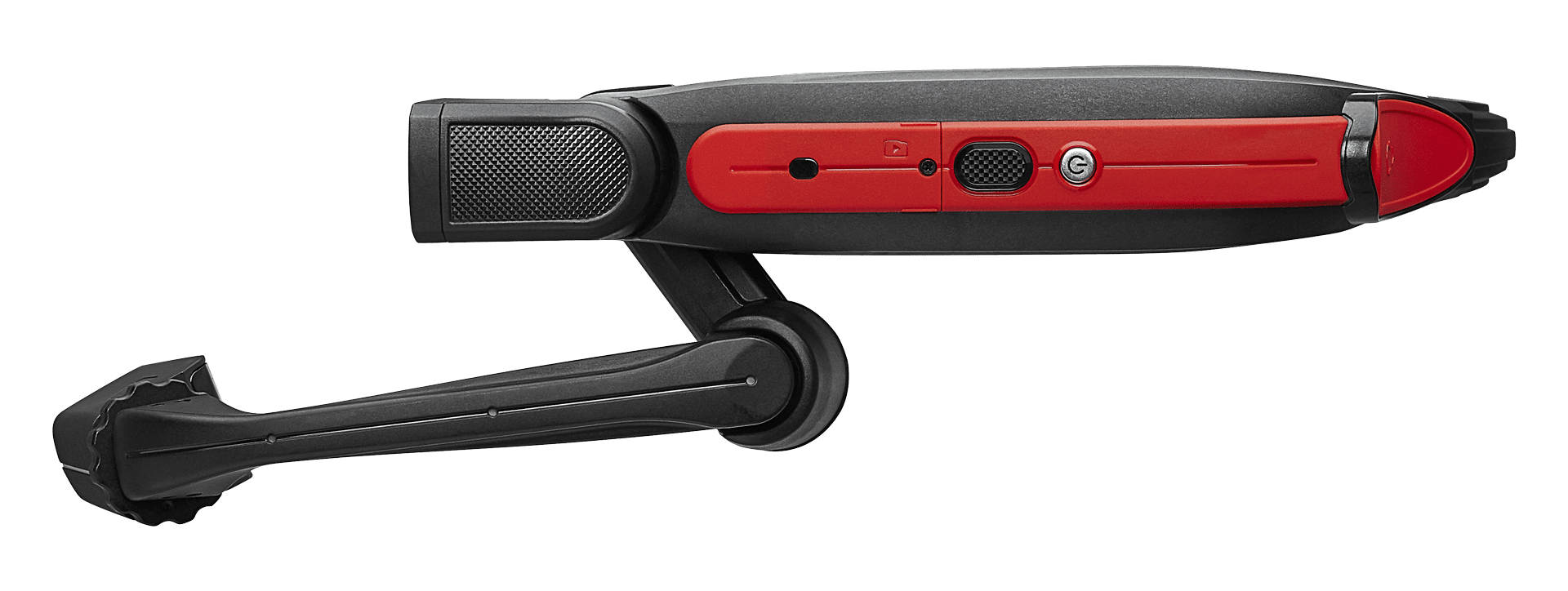

The Realwear® HMT-1Z1 is an intrinsically safe ATEX Zone 1 and CSA C1/D1 certified fully rugged head-mounted device. Use it in wet, dusty, hot, dangerous environments. It optionally snaps into safety helmets and can be used with safety glasses or corrective eyewear. The high-resolution microdisplay fits just below your line of sight and views like a 7” tablet. It’s an industrial
dashboard: there when you need it and out of your way when you don’t.

The HMT-1Z1 works with powerful software applications from our solution partners in four core categories, each optimized for completely hands-free voice control. That means no scrolling, swiping, or tapping just simple voice commands. Use it for remote mentor video calling, document navigation, guided workflow, mobile forms, and industrial IoT data visualization.

100% Hands-free: Voice-based operating system with local, speech recognition in loud areas
Unmatched noise cancellation: Four digital microphones and advanced algorithms
Powerful audio: Integrated speaker and 3.5mm audio jack for use with hearing protection.
PPE compatible: Designed to work with standard hard helmets, bump caps, and safety glasses.
Full shift internal battery: Field swappable for continuous use.
Outdoor display: Appears size of 7’ tablet, viewing in bright sunlight.
Water Resistant: IP66-Protected against seas or powerful jets of water.
Dust-tight: IP66-Complete protection against the ingress of microparticles.
Shock Resistant: Resistant to 2 meter drops onto concrete from any angle.
Built rugged: Fully operational from -20° C to +50° C ML-STD-810G
Workband2
Battery Pack
USB-C Cable
Australian Wall Charger

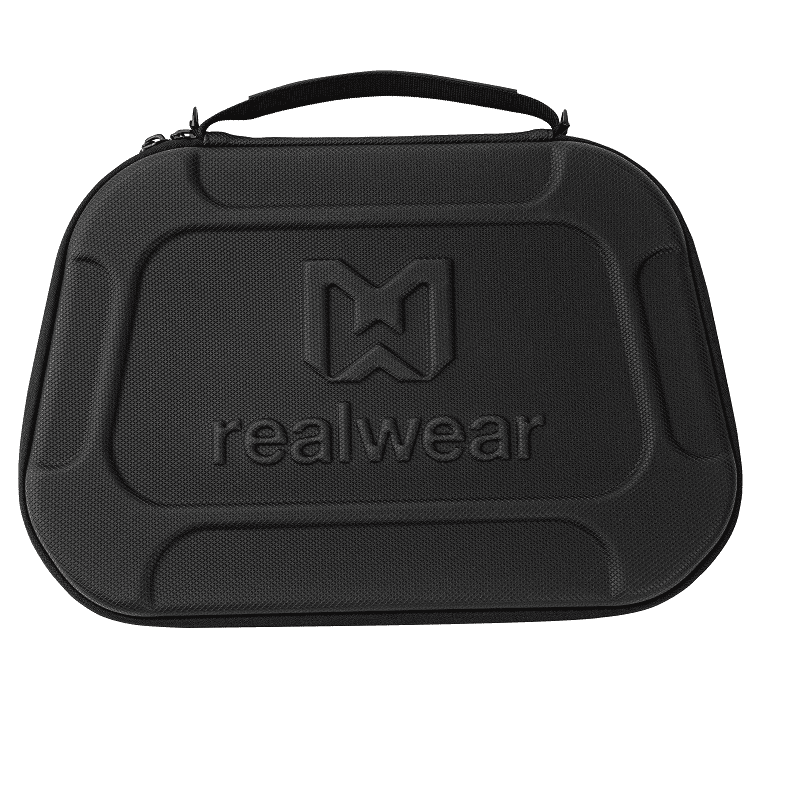

Semi Rigid Carry Case
Quick Start Guide
Advanced Support Plan

Specifications

Core Platform & Functions

Chipset 2.0 GHz 8-core Qualcomm® Snapdragon™ 625 with Adreno 506 GPU – OpenGL ES 3.1 & OpenCL 2.0

Included Applications

Document Navigator, Camera with Barcode Reader, Video Recorder, Media Player

Languages Supported

English, Spanish, French, German, Italian, Portuguese, Russian, Mandarin Chinese, Japanese, Korean, Thai, Polish

Memory

16 GB Internal Storage / 2 GB RAM / MicroSD slot (max card supported 64 GB)

Operating System

Android 8.1.0 (AOSP) + WearHF™ hands-free interface

Connectivity & Sensors

Bluetooth Bluetooth Low Energy 4.1 Wi-Fi 802.11 a/b/g/n/ac – 2.4GHz and 5GHz GPS and Location GPS, GLONASS, A-GPS IMU 9-DOF (3-axis accelerometer, magnetometer, and gyroscope), software enhanced stabilization

Battery

Capacity 3400 mAh/12.24 wH Li-Ion, rechargeable Battery Life Full shift (8-10 hours) with typical use

Physical Characteristics

Weight 430 g Ruggedization Intrinsically safe, IP66, MIL-STD-810G, 2-meter drop test Dedicated Keys Power key, application-speciﬁc Action key

Ports 3.5mm audio, 1 micro-USB Boom Arm Adjust six ways for all head sizes, left or right eye compatible, display flips out of the way when not in use

Display

Type 20° ﬁeld-of-view, 1-meter ﬁxed focus 24-bit color LCD, 0.33 inch diagonal, outdoor visible Resolution WVGA (854×480)

Audio

Microphone 4 digital microphones with active noise cancellation Accurate voice recognition even in 95 dBA of typical industrial noise Speaker Internal 91 dB loudspeaker

Multimedia

Camera 16 MP 4-axis optical image stabilization, PDAF with LED flashlight Video Up to 1080p @30fps. Codecs: VP8, VP9, and hardware encoding support for H.264, H.265 HEVC

Accessories

Included Wall Charger, Micro-USB Charging Cable with inline Charging Protection “safety box”, Overhead Strap, Rear Head Pad Optional Hard Hat Clips, intrinsically safe (IS certified) Ear Bud Hearing Protection Headphone rated at 33dB noise reduction rating (NRR), Soft Pouch Carrying Case, Semi-Rigid Carrying Case, replacement Overhead Straps and Rear Pads, Hard Hat, Micro SD card
